Fold in Just 5 Seconds X1 takes pride in its cutting-edge quick multi-stage disassembly design. With no need for cumbersome tools, just a few simple steps allow for the rapid disassembly of various components, ensuring easy portability and storage. |  |
 | Carry More,Enjoy More The rear rack can load up to 120 Ibs. With pedboards on both sides, you can easily attach various things like water bottle, bike lock and so on. |

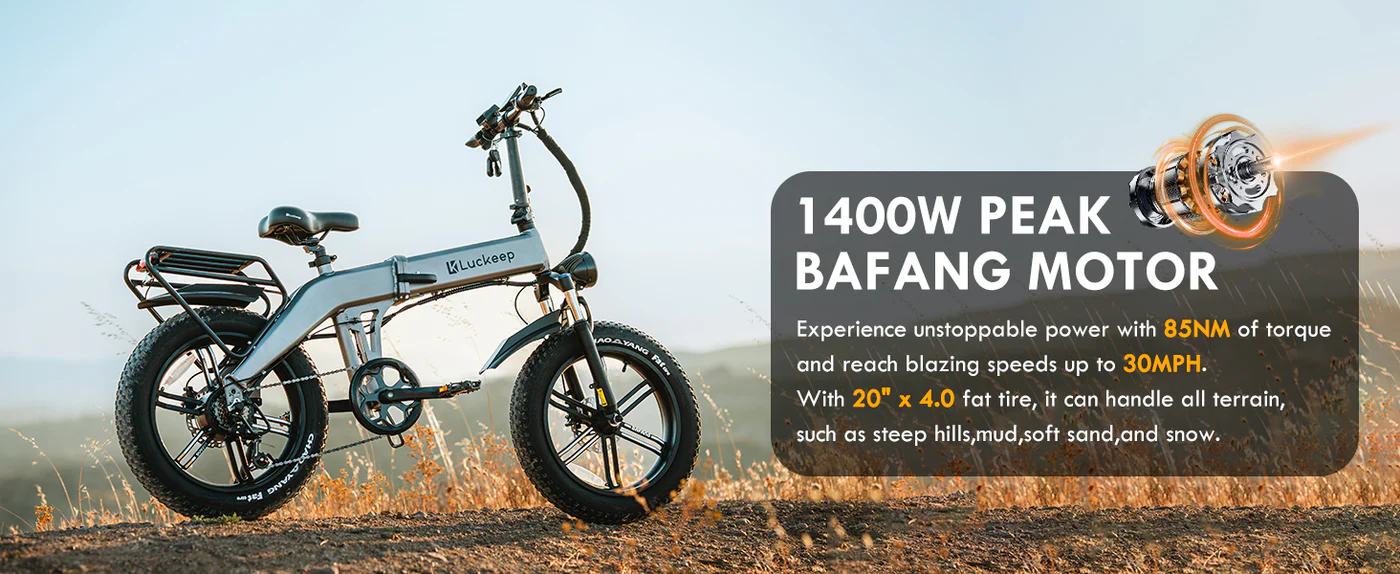

Pure Speed, Instantly! 0 to 30 mph in Just 3 Seconds.Under the assistance of level 5 pedal assist, it provides 85 Nm of torque in just 1 seconds.The motor, a result of Luckeep’s collaboration with Bafang, utilizes a brushless gear structure, with a peak power of up to 1400W. It enables effortless control over riding speeds from 1 to 5 gears, offering a customizable and intuitive riding experience. |  |
Luckeep-X1
General Info
MODEL
Luckeep X1 Foldable Ebike
IDEAL USE
All-terrain
RANGE
40 miles on throttle mode, 60 miles on pedal assist mode
WEIGHT
76 lbs (Battery Included)
TOTAL WEIGHT LIMIT
330 lbs
RIDER HEIGHT
5'4"-6'4"FT
PEDAL ASSIST
5 levels
Frameset
FRAME
6061 Aluminum Alloy

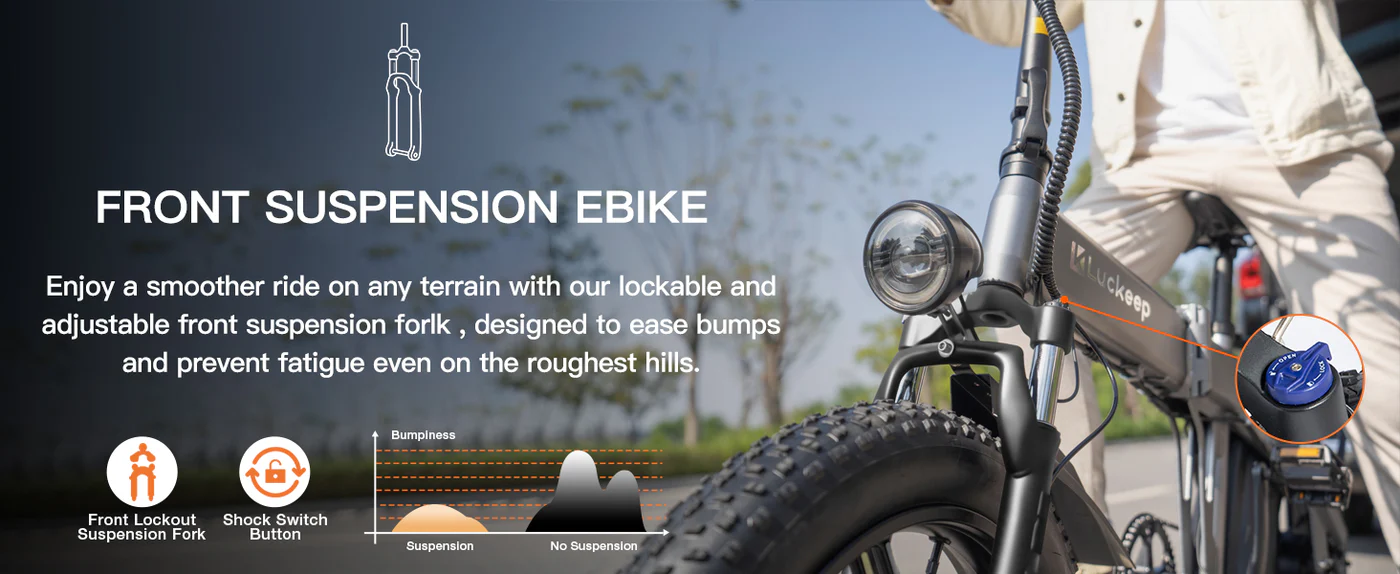

FORK
Suspension Fork with 80mm Travel, with Lockout
FRAME STYLE
Step-Over
Wheelset
RIM
Aluminum Alloy
SPOKES
Aluminum Alloy
TUBES
Butyl Rubber, Schrader Valve
TIRES
20x4.0" ChaoYang Puncture Resistant Magnesium alloy Fat Tire
Ebike System
THROTTLE
Twist Throttle with Cruise Control
MOTOR
1400w (peak), 750w (sustained), 48VBAFANG Brushless Rear Hub Motor with 85Nm
DISPLAY
3.5" IPS Display LED Integrated with APP Control

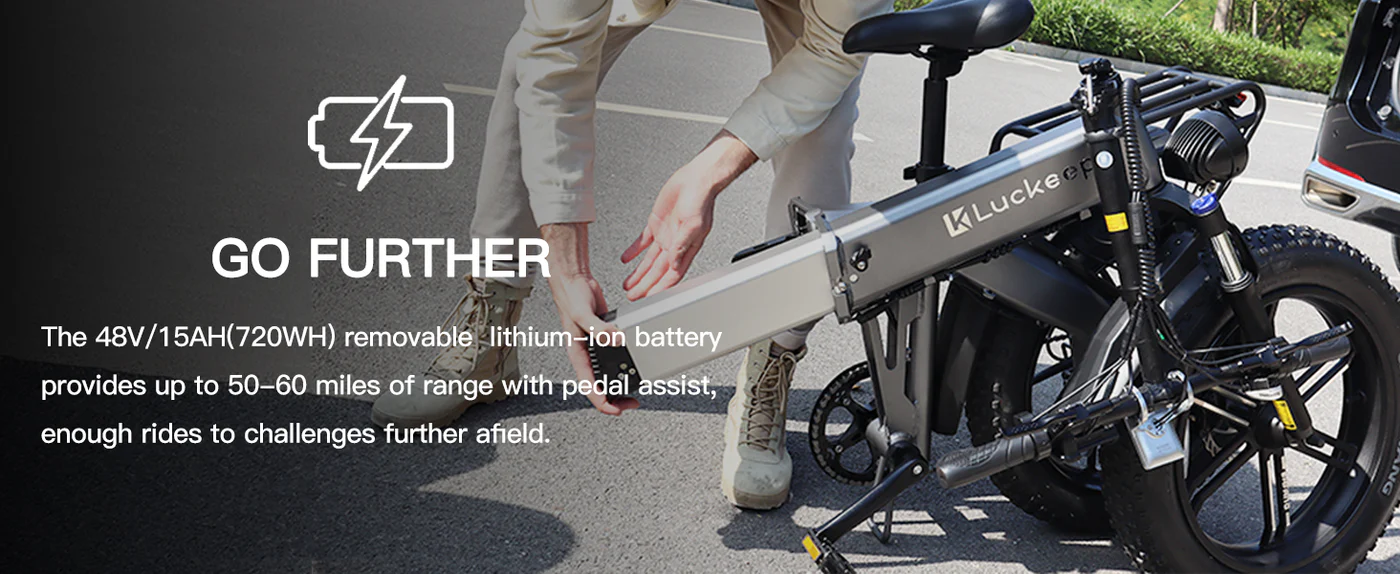

BATTERY
Removable Internal Lithium-ion 48V 15AH (720Wh), UL 2849 Compliant
SENSORS
Speed Sensor, Brake Sensor
CHARGER
54.6V 3.0A, US Standard 3A Fast Charger, 4-5 Hour Charging Time

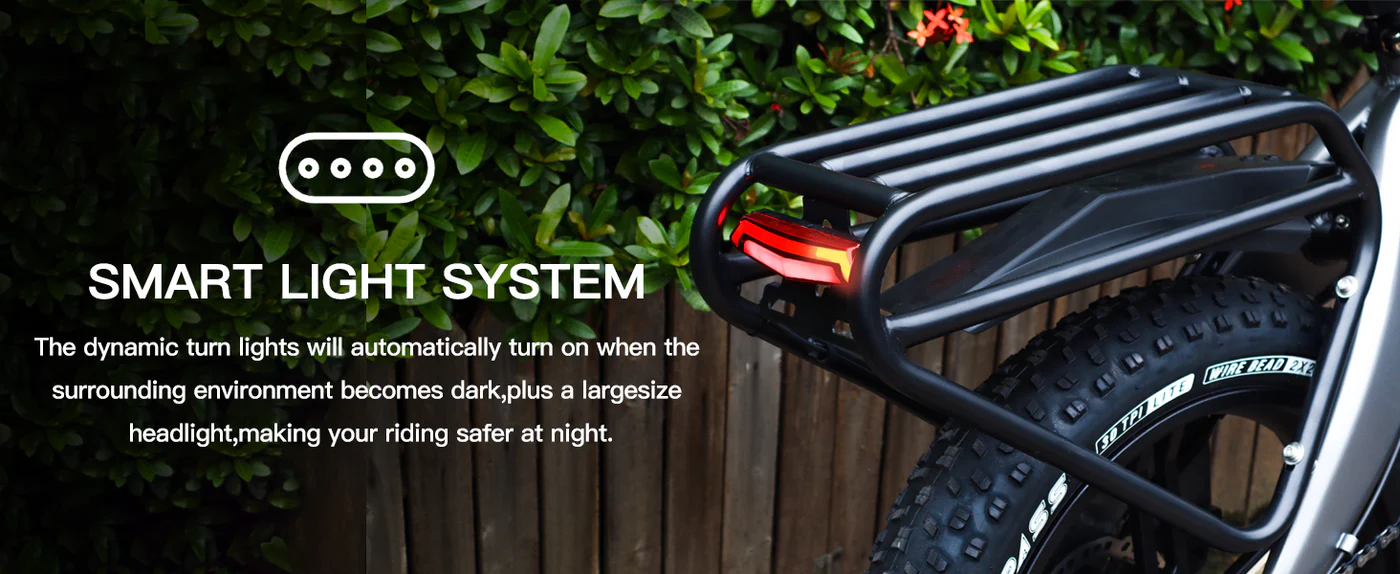

LIGHTS
Inclued
BRAKES
F & R Hydraulic Disc Brakes, 160mm Rotors
Controller
48V, 25±1A
Drivetrain
BOTTOM BRACKET
Square Taper, Sealed, Speed Sensor
PEDALS
9/16"
REAR DERAILLEUR

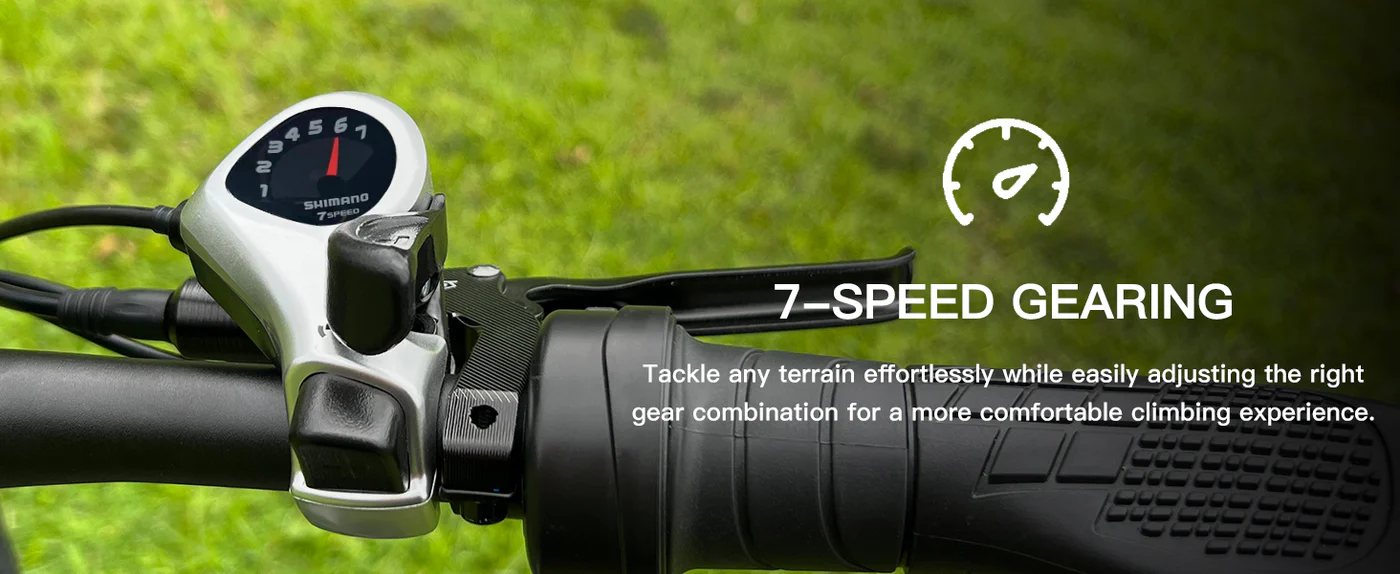

7 Speed Shimano Rear Derailleur
CASSETTE
Shimano 7-Speed
SHIFT LEVER
7 Speed Trigger
